Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe
Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe
Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe
Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe
SKU: WAS-560 Category: Tags: , , , , , , , , , , , , , , , ,

Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe

£1,027.90

Fitting and suspension setup also available, for information contact us prior to order info@macgracing.co.uk. Typical lead time up to 6 weeks for non stocked items.

Product Description

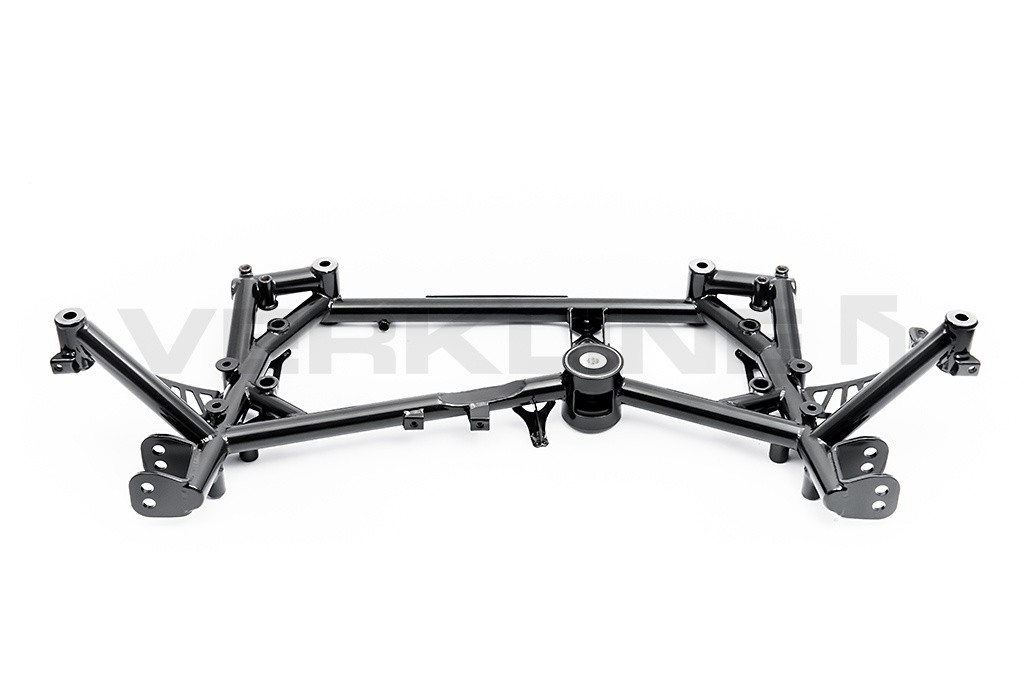

Verkline Audi TT / TTS / TTRS 8J front tubular lightweight subframe

Product Ref: WAS-560

After long CAD development based on 3D scan of OEM subframe, tested with CAD FEA (Finite element method) and road going tests you can now buy brand a new subframe for front of your Audi TT / TTS / TT-RS

Using same T45 tubing as in WRC cars, Verkline subframes provide increased stiffness and mass reduction. All factory parts bolt up to this unit, no other modifications are necessary.

Benefits:
– 6 kg (13 lbs), it is 3.3 kg (7.3lbs) saving over OEM subframe. OEM subframe is 9.3 kg.
– second, higher set of control arms mounts to correct suspension kinematics to be used with our tubular wishbones
– one mounting subframe position, eliminates subframe shifting under the car. No need for subframe locking kit/deadset collar kit (weight savings).
– increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings).
– better access to car under body and enables wishbones change with out subframe removal
– polyurethane dogbone mount, significantly reduces engine pitching back and forwards essential for performance driving, no need for additional dog bone insert or aftermarket mount

Features:
– T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets
– all components TIG welded
– delivered subframes are Powder coated in black as standard. Other colour options available at additional cost at customer request. RAL paint code must be provided.
– can be used with OEM wishbones
– mounts to the OEM car body and no other modifications are needed to fit the subframe
– includes two xenon lights mounts
– can be used with OEM undertray
– can be used with OEM or aftermarket dogbone support (mounts)

What is included:
– front subframe painted with black polyurethane dogbone mount

Used in :
– Audi TT 8J (2009-2014)
– Audi TTS 8J (2009-2014)
– Audi TTRS 8J (2009-2014)
– VW Beetle A5 (2011-2019)

Subframe now is made for both LHD and RHD cars!

T45 is a very unique seamless carbon based steel tube that has been used in many applications in different industries. It is stronger than Co-Mo 4130 tubing that also used in motorsport. It is widely used in the aerospace sector in equipment such as pilot’s seats and crew’s seats due to the materials ability to withstand high G forces without snapping or splitting. This material is a Carbon Manganese based and conforms to the full Aerospace Specification laid down by British Standards.

Properties
Tensile: 700 – 900MPa,
0.2% Yield 620MPa minimum
Hardness Test: 201min – 262 max HB or 210min – 275max HV.

Replaces:
– 8J0199313C / 8J0 199 313C

Does not work with cars that use subframe part number:
– 8J1423055B

Notice: Sold for off road, track and racing applications only. Installation of this product will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin. We strongly advise to mount the subframe in a qualified and experienced workshop.

The standard wishbones should be mounted to the lower mount. Higher mount can be used only with our special tubular wishbones.

IMPORT NOTICE: Must use newer Gen3 steering rack. The Old rack was mounted in some cars prior 2008. Please check fitment before placing an order with us.
